Custom Tool Holders

Hydra-Lock produces a wide range of standard and adjustable tool holders to mount virtually any type of tool.

sidephoto-toolholders

Customized sizes to any CAT-V Flange Mounting

Standard inch & metric sizes

  • 30CAT “C” style
  • 40CAT “C” style
  • 50CAT “C” style

Patented adjustable (T.I.R.) inch & metric sizes

  • 30CAT “F” style
  • 40CAT “F” style
  • 50CAT “F” style



Customized sizes to any BT Mounting

Standard inch & metric sizes

  • 30BT “C” style
  • 40BT “C” style
  • 50BT “C” style

Patented adjustable (T.I.R.) inch & metric sizes

  • 30BT “F” style
  • 40BT “F” style
  • 50BT “F” style



Customized sizes to any HSK Mounting

HSK mounting sizes 32-160 are available upon request

Standard inch & metric sizes

  • 50A “C” style
  • 63A “C” style
  • 80A “C” style
  • 100A “C” style

Patented Adjustable (T.I.R.) inch & metric sizes

  • 50A “F” style
  • 63A “F” style
  • 80A “F” style
  • 100A “F” style

Customized sizes to any special spindle mounting, both standard and patented adjustable (T.I.R), are available upon request



Tool Holding Resources



Multi-Operational Tools

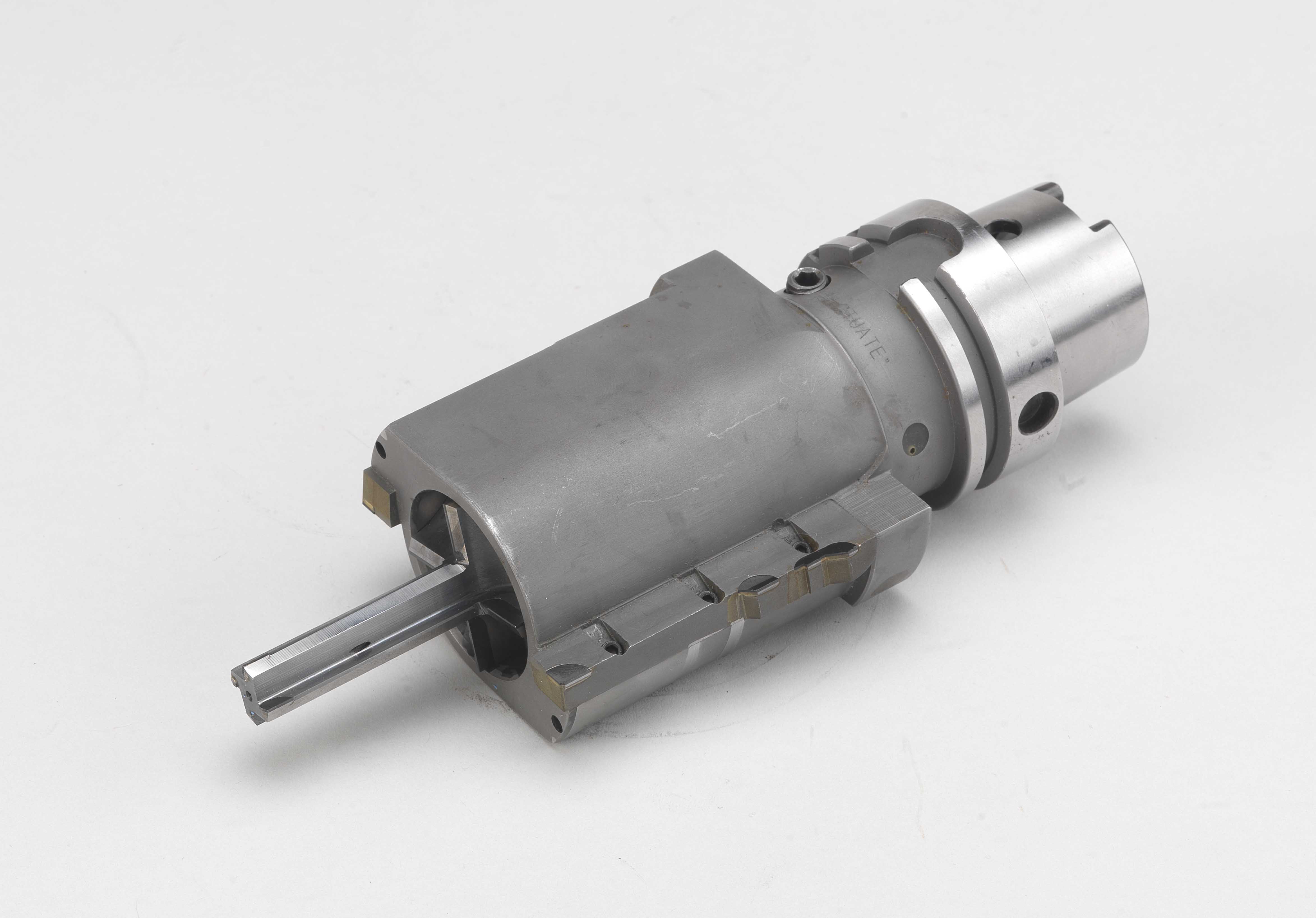

Cut Part bore 004Hydra-Lock’s patented, multi-operational tool chuck is a diamond OD tool chuck with a built-in hydraulic holder for increased performance. The dampening effect of a hydraulic holder helps eliminate vibration and chatter, and allows for a quick tool change of the center tool.

All of our tool holders are precision balanced and maintain a T.I.R. of .0002”. In addition, the diamond cartridges on the outside diameter are easily repaired or replaced.



Collets

Hydralock-Collets-2014
